SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel

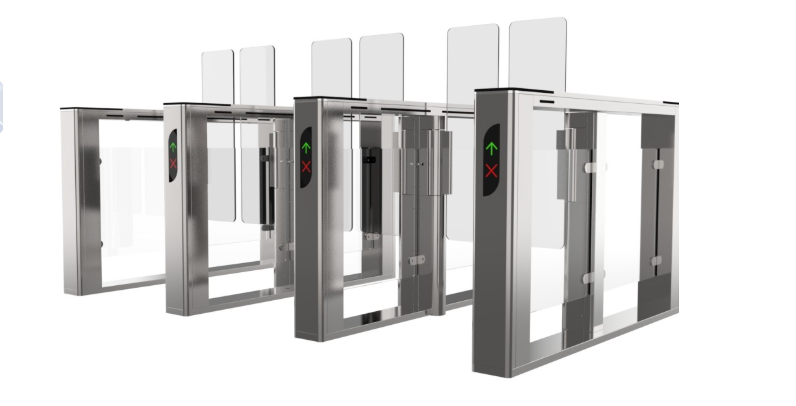

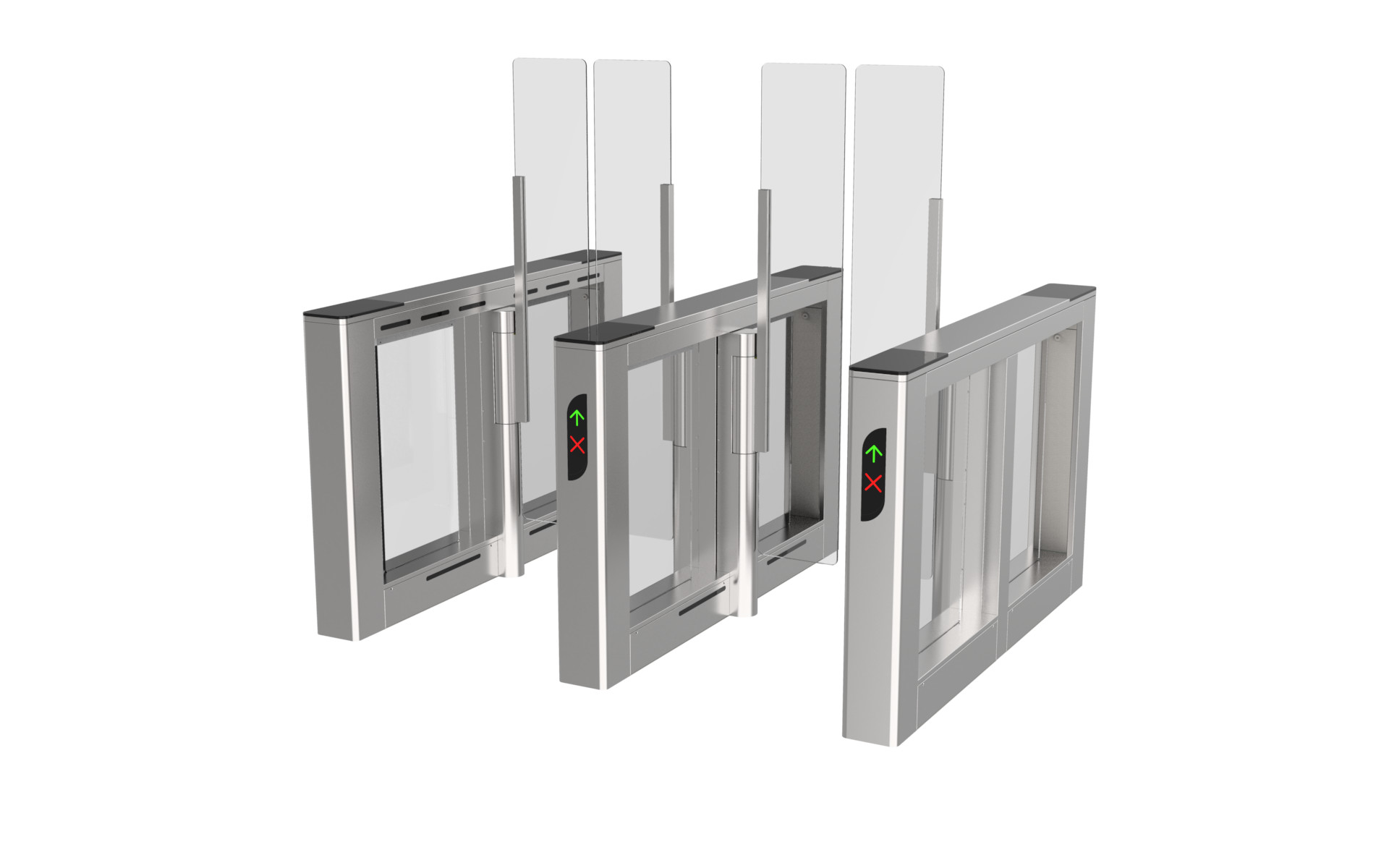

SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel
SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel SecureEntry Pro Speed Gate Turnstile SUS304 Stainless Steel
Informação Básica
Place of Origin: China
Marca: DOOR or OEM
Certificação: CE / IS09001
Model Number: DR.TD6621H
Minimum Order Quantity: 1 lane
Preço: negotiable
Packaging Details: Plywood box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
Melhor preço contacto
Material: SUS304 brushed stainless steel Suitable For: Access Control, Entrance And Exit Control
Turnstile Material: SUS304 Stainless Top Cover Material: SUS304 Stainless
Communication Interface: RS485, dry contact, relay Power Input: AC100-240V; 50/60HZ
Swing arm available: Acrylics Or Tempered Glass Driving Motor: Servo Motor
Opening Signal Input:: Dry Contact Working environment: -25℃-+70℃
Pass speed: 30-50p/m Support System: Face Recognition,ic/id Card,fingerprint
Motor: Servo motor IR Sensor: 8 pairs
IP Rating: IP42 Mean Cycles Between Failure: 20 million times
Voltage: AC110V/AC220V±10% 50-60Hz Operating Power: Single Core 100w, dual core 200w
Method of position: Motor + clutch + encoder Mtbf: 10 Million Times
Size: L1600*W160*H990mm
Destacar:

stainless steel speed gate turnstile

,

SecureEntry Pro turnstile with warranty

,

SUS304 speed gate access control

SecureEntry Pro Turnstile
Technical Specifications
Attribute Value
Material SUS304 brushed stainless steel
Suitable For Access Control, Entrance And Exit Control
Turnstile Material SUS304 Stainless
Top Cover Material SUS304 Stainless
Communication Interface RS485, dry contact, relay
Power Input AC100-240V; 50/60HZ
Swing arm available Acrylics Or Tempered Glass
Driving Motor Servo Motor
Opening Signal Input Dry Contact
Working environment -25℃-+70℃
Pass speed 30-50p/m
Support System Face Recognition, IC/ID Card, Fingerprint
Motor Servo motor
IR Sensor 8 pairs
IP Rating IP42
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Operating Power Single Core 100w, dual core 200w
Method of position Motor + clutch + encoder
MTBF 10 Million Times
Size L1600*W160*H990mm
Product Overview

Crafted from stainless steel via laser cutting and CNC bending, this speed gate combines sleek aesthetics with precision engineering. Advanced manufacturing and rigorous quality control ensure a durable, minimalist design.

Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
  • High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.
(Note: Recognition systems not included; product provides standardized connection interfaces only)
Applications

Ideal for office buildings, government facilities, banks, airports, hotels, campuses, and high-end residential areas.

Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
